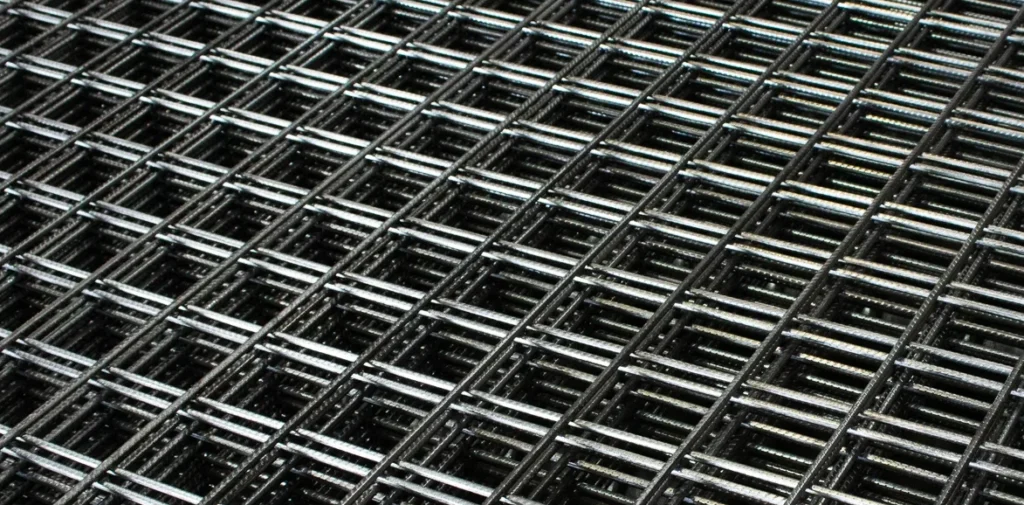

A Tela Soldada Nervurada JAL é um produto proveniente de um processo com tecnologia avançada, é fabricada com aço CA-60 nervurado certificado, que permite maior aderência do aço com o concreto.

Soldada em todos os pontos de cruzamento garante melhor ancoragem, ligando elementos estruturais, além de um excelente controle de fissuramento, você encontra a Tela Eletrosoldada JAL em painéis com 2,45m x 6,00m além de modelos com comprimentos especiais.

Aplicações: Lajes (maciças, pré-moldadas, cogumelos e protendidas), pisos industriais, pavimentos de concreto armado (corredor de ônibus, estradas), pré-moldados, pontes, viadutos e piscinas.

ProdutoSeções nominais (cm²/m)

Long. X Trans.		Espaçamento entre
fios (cm)

Long. X Trans.		Ø Bitola (mm)

Long. X Trans.		Nº de Fios/Barras

Long. X Trans.		Dimensões (m)

Larg. X Comp.		Massa Nominal

Kg m² X Kg/Peça
Q610,610,6115153,403,4017402,45 x 6,000,9714,3
Q750,760,7615153,803,8017402,45 x 6,001,2117,8
Q920,920,9215154,204,2017402,45 x 6,001,4821,8
L920,920,3815304204,2017202,45 x 6,001,0515,5
Q1131,131,1310103,803,8025602,45 x 6,001,8026,4
L1131,130,3810303,803,8025202,45 x 6,001,2117,7
T1130,381,1330103,803,809602,45 x 6,001,2217,9
Q1381,381,3810104,204,2025602,45 x 6,002,2032,3
R1381,380,9210154,204,2025402,45 x 6,001,8327,0
M1381,380,6910204,204,2025302,45 x 6,001,6524,3
L1381,380,6910304,204,2025202,45 x 6,001,4721,6
T1380,461,3830104,204,2025202,45 x 6,001,4921,9
Q1661,661,6610104,604,6025602,45 x 6,002,6338,7
R1661,661,1110154,604,6025402,45 x 6,002,2032,3
M1661,660,8310204,604,6025302,45 x 6,001,9829,2
L1661,660,5510304,604,6025202,45 x 6,001,7726,0
Q1961,961,9610105,05,025602,45 x 6,003,1145,8
R1961,961,3110155,05,025402,45 x 6,002,6038,2
M1961,960,9810205,05,025302,45 x 6,002,3434,4
L1961,960,6510305,05,025202,45 x 6,002,0930,7
T1960,651,9630105,05,09602,45 x 6,002,1131,0
Q2382,382,3810105,55,525602,45 x 6,003,7755,4
R2382,381,5910155,55,525402,45 x 6,003,1546,2
M2382,381,1910205,55,525302,45 x 6,002,8341,7
L2382,380,7910305,55,525202,45 x 6,002,5237,1
T2380,792,3830105,55,525202,45 x 6,002,5537,5
Q2832,832,8310106,06,025602,45 x 6,004,4865,9
R2832,831,8910156,06,025402,45 x 6,003,7455,0
M2832,831,4210206,06,025302,45 x 6,003,3749,6
L2832,830,9410306,06,025202,45 x 6,003,0044,2
T2830,942,8330106,06,09602,45 x 6,003,0344,6
Q3353,353,3515158,08,017402,45 x 6,005,3778,9
M3353,351,6815308,08,017202,45 x 6,004,0559,6
L3353,350,9415308,06,017202,45 x 6,003,4851,2
T3350,943,3530156,08,09402,45 x 6,003,4550,7
Q3853,853,8510107,07,025602,45 x 6,006,1089,7
R3853,852,5710157,07,025402,45 x 6,005,1074,9
M3853,851,9310207,07,025302,45 x 6,004,5967,5
L3853,850,9410307,06,025202,45 x 6,003,8256,2
T3850,943,8530106,07,09602,45 x 6,003,8256,4
Q4734,734,7315159,59,517402,45 x 6,007,57111,3
M4734,732,3715309,59,517202,45 x 6,005,7284,0
L4734,730,9415309,506,017202,45 x 6,004,6067,6
T4730,944,7330156,09,59402,45 x 6,004,5266,5
Q5035,035,0310108,08,025602,45 x 6,007,97117,2
R5035,033,3510158,08,025402,45 x 6,006,6697,9
M5035,032,5210208,08,025302,45 x 6,006,0088,2
L5035,030,9410308,06,025202,45 x 6,004,7770,1
T5030,945,0330106,08,09602,45 x 6,004,7670,0
Q5245,245,24151510,010,017402,45 x 6,008,37123,3
L5245,240,94153010,06,017202,45 x 6,005,0273,8
T5240,945,2430156,010,09402,45 x 6,004,9372,4
Q7097,097,0910109,59,525602,45 x 6,0011,24165,3
L7097,090,9410309,56,025202,45 x 6,006,4294,3
T7090,947,0930106,09,59602,45 x 6,006,3893,8
Q7857,857,85101010,010,025602,45 x 6,0012,46183,1
R7857,855,231015101025402,45 x 6,0010,40152,9
M7857,853,931020101025302,45 x 6,009,37137,8
L7857,850,94103010,06,025202,45 x 6,007,03103,4
T7850,947,8530106,010,09602,45 x 6,006,89102,6

A linha de produtos completa para atender o seu projeto.

Para outros modelos e/ou medidas, consultar via formulário abaixo:
